We can provide you with customized services for the entire process, starting from raw materials, including forging, annealing, turning, heat treatment and grinding.

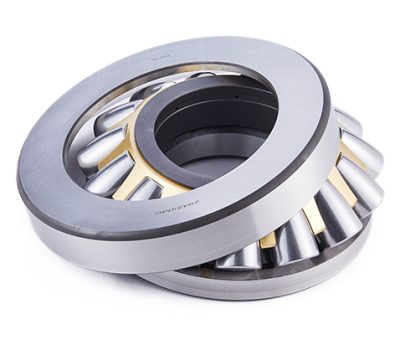

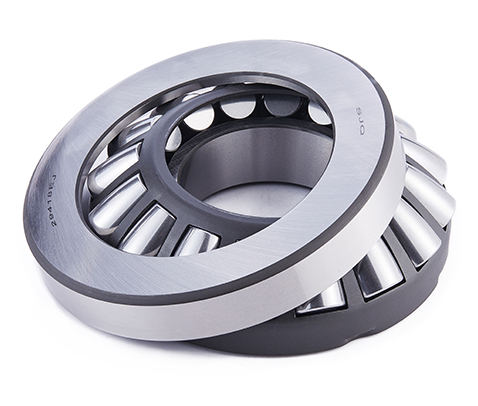

Thrust Spherical Roller Bearing

The Thrust Spherical Roller Bearing can bear large axial load and has self-aligning function.The stamped steel plate window type or brass machined cage is adopted.

Notice: The company’s products are still being uploaded. If you can’t find what you’re looking for, please feel free to submit a request form directly.

Product Parameters

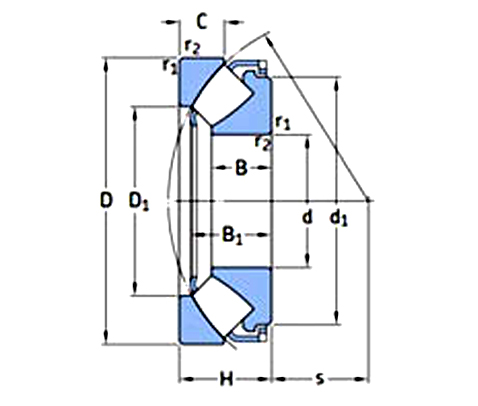

Bearing number	Boundary dimensions（mm）			Base load rating		Limit Value	A	Rated Speed		Weight
Bearing number	d	D	B	C	Co	Limit Value	A	Speed Ref	Limiting Speed	Weight
29230 E	150	215	39	408	1600	180	0 24	1800	2800	4 30
29236 E	180	250	42	495	2040	212	0 40	1600	2600	5 80
29240 E	200	280	48	656	2650	285	0 67	1400	2200	9 30
29244 E	220	300	48	690	3000	310	0 86	1300	2200	10 0
29248	240	340	60	799	3450	335	1 1	1100	1800	16 5
29252	260	360	60	817	3650	345	1 3	1100	1700	18 5
29256	280	380	60	863	4000	375	1 5	1000	1700	19 5
29260	300	420	73	1070	4800	465	2 2	900	1400	30 5
29264	320	440	73	1110	5100	465	2 5	850	1400	33 0
29268	340	460	73	1130	5400	480	2 8	850	1300	33 5
29272	360	500	85	1460	6800	585	4 4	750	1200	52 0
29276	380	520	85	1580	7650	655	5 6	700	1100	53 0
29280	400	540	85	1610	8000	695	6 1	700	1100	55 5
29284	420	580	95	1990	9800	815	9 1	630	1000	75 5
29288	440	600	95	2070	10400	850	10	630	1000	78 0
29292	460	620	95	2070	10600	865	11	600	950	81 0

Bearing number	Boundary dimensions（mm）			Base load rating		Limit Value	A	Rated Speed		Weight
Bearing number	d	D	B	C	Co	Limit Value	A	Speed Ref	Limiting Speed	Weight
29296	480	650	103	2350	11800	950	13	560	900	98 0
292/500	500	670	103	2390	12500	1000	15	560	900	100
292/530 EM	530	710	109	3110	15300	1220	22	530	850	115
292/560	560	750	115	2990	16000	1220	24	480	800	140
292/600 EM	600	800	122	3740	18600	1460	33	450	700	170
292/630 EM	630	850	132	4770	23600	1800	53	400	670	210
292/670	670	900	140	4200	22800	1660	49	380	630	255
292/750 EM	750	1000	150	6100	31000	2320	91	340	560	325
292/800 EM	800	1060	155	6560	34500	2550	110	320	530	380
292/850 EM	850	1120	160	6730	36000	2550	120	300	500	425
292/950 EM	950	1250	180	8280	45500	3100	200	260	430	600
29317 E *	85	150	39	380	1060	129	0 11	2400	4000	2 75
29318 E *	90	155	39	400	1080	132	0 11	2400	4000	2 85
29320 E *	100	170	42	465	1290	156	0 16	2200	3600	3 65
29322 E *	110	190	48	610	1730	204	0 28	1900	3200	5 30
29324 E *	120	210	54	765	2120	245	0 43	1700	2800	7 35

Bearing number	Boundary dimensions（mm）			Base load rating		Limit Value	A	Rated Speed		Weight
Bearing number	d	D	B	C	Co	Limit Value	A	Speed Ref	Limiting Speed	Weight
29326 E *	130	225	58	865	2500	280	0 59	1600	2600	9 00
29328 E *	140	240	60	980	2850	315	0 77	1500	2600	10 5
29330 E *	150	250	60	1000	2850	315	0 77	1500	2400	11 0
29332 E *	160	270	67	1180	3450	375	1 1	1300	2200	14 5
29334 E *	170	280	67	1200	3550	365	1 2	1300	2200	15 0
29336 E *	180	300	73	1430	4300	440	1 8	1200	2000	19 5
29338 E *	190	320	78	1630	4750	490	2 1	1100	1900	23 5
29340 E *	200	340	85	1860	5500	550	2 9	1000	1700	29 5
29344 E *	220	360	85	2000	6300	610	3 8	1000	1700	33 5
29348 E *	240	380	85	2040	6550	630	4 1	1000	1600	35 5
29352 E *	260	420	95	2550	8300	780	6 5	850	1400	49 0
29356 E *	280	440	95	2550	8650	800	7 1	850	1400	53 0
29360 E *	300	480	109	3100	10600	930	11	750	1200	75 0
29364 E *	320	500	109	3350	11200	1000	12	750	1200	78 0
29368	340	540	122	2710	11000	950	11	600	1100	105
29372	360	560	122	2760	11600	980	13	600	1100	110

Bearing number	Boundary dimensions（mm）			Base load rating		Limit Value	A	Rated Speed		Weight
Bearing number	d	D	B	C	Co	Limit Value	A	Speed Ref	Limiting Speed	Weight
29376	380	600	132	3340	14000	1160	19	530	1000	140
29380	400	620	132	3450	14600	1200	20	530	950	150
29384	420	650	140	3740	16000	1290	24	500	900	170
29388 EM	440	680	145	4490	19300	1560	35	480	850	180
29392	460	710	150	4310	19000	1500	34	450	800	215
29396	480	730	150	4370	19600	1530	36	450	800	220
293/500	500	750	150	4490	20400	1560	40	430	800	235
293/530	530	800	160	5230	23600	1800	53	400	750	270
293/630 EM	630	950	190	8450	38000	2900	140	320	600	485
293/710 EM	710	1060	212	9950	45500	3400	200	280	500	660
293/750	750	1120	224	9370	45000	3050	190	260	480	770
293/800	800	1180	230	9950	49000	3250	230	240	450	865
29412 E *	60	130	42	390	915	114	0 080	2800	5000	2 60
29413 E *	65	140	45	455	1080	137	0 11	2600	4800	3 20
29414 E *	70	150	48	520	1250	153	0 15	2400	4300	3 90
29415 E *	75	160	51	600	1430	173	0 19	2400	4000	4 70

Bearing number	Boundary dimensions（mm）			Base load rating		Limit Value	A	Rated Speed		Weight
Bearing number	d	D	B	C	Co	Limit Value	A	Speed Ref	Limiting Speed	Weight
29416 E *	80	170	54	670	1630	193	0 25	2200	3800	5 60
29417 E *	85	180	58	735	1800	212	0 31	2000	3600	6 75
29418 E *	90	190	60	815	2000	232	0 38	1900	3400	7 75
29420 E *	100	210	67	980	2500	275	0 59	1700	3000	10 5
29422 E *	110	230	73	1180	3000	325	0 86	1600	2800	13 5
29424 E *	120	250	78	1370	3450	375	1 1	1500	2600	17 5
29426 E *	130	270	85	1560	4050	430	1 6	1300	2400	22 0
29428 E *	140	280	85	1630	4300	455	1 8	1300	2400	23 0
29430 E *	150	300	90	1860	5100	520	2 5	1200	2200	28 0
29432 E *	160	320	95	2080	5600	570	3	1100	2000	33 5
29434 E *	170	340	103	2360	6550	640	4 1	1100	1900	44 5
29436 E *	180	360	109	2600	7350	710	5 1	1000	1800	52 5
29438 E *	190	380	115	2850	8000	765	6 1	950	1700	60 5
29440 E *	200	400	122	3200	9000	850	7 7	850	1600	72 0
29444 E *	220	420	122	3350	9650	900	8 8	850	1500	75 0
29448 E *	240	440	122	3400	10200	930	9 9	850	1500	80 0

Bearing number	Boundary dimensions（mm）			Base load rating		Limit Value	A	Rated Speed		Weight
Bearing number	d	D	B	C	Co	Limit Value	A	Speed Ref	Limiting Speed	Weight
29452 E *	260	480	132	4050	12900	1080	16	750	1300	105
29456 E *	280	520	145	4900	15300	1320	22	670	1200	135
29460 E	300	540	145	4310	16600	1340	26	600	1200	140
29464 E	320	580	155	4950	19000	1530	34	560	1100	175
29468 E	340	620	170	5750	22400	1760	48	500	1000	220
29472 EM	360	640	170	5350	21200	1630	43	500	950	230
29476 EM	380	670	175	5870	24000	1860	55	480	900	260
29480 EM	400	710	185	6560	26500	1960	67	450	850	310
29484 EM	420	730	185	6730	27500	2080	72	430	850	325
29488 EM	440	780	206	7820	32000	2320	87	380	750	410
29492 EM	460	800	206	7990	33500	2450	110	380	750	425
29496 EM	480	850	224	9550	39000	2800	140	340	670	550
294/500 EM	500	870	224	9370	40000	2850	150	340	670	560
294/530 EM	530	920	236	10500	44000	3100	180	320	630	650
294/560 EM	560	980	250	12000	51000	3550	250	300	560	810
294/600 EM	600	1030	258	13100	56000	4000	300	280	530	845

Bearing number	Boundary dimensions（mm）			Base load rating		Limit Value	A	Rated Speed		Weight
Bearing number	d	D	B	C	Co	Limit Value	A	Speed Ref	Limiting Speed	Weight
294/630 EM	630	1090	280	14400	62000	4150	370	260	500	1040
294/670 EM	670	1150	290	15400	68000	4500	440	240	450	1210
