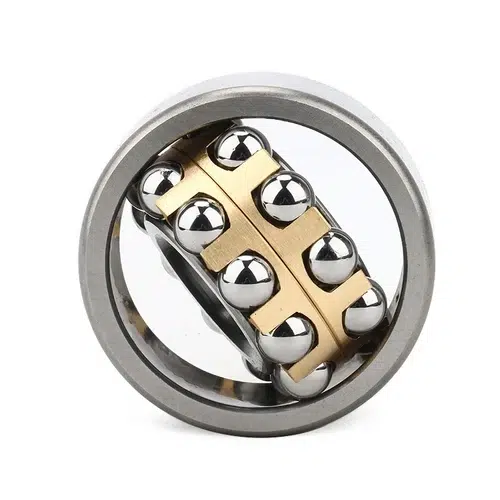

Self-Aligning Ball Bearing

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring.，Self-aligning ball bearings have a spherical raceway in the outer ring with a center of curvature matched with the bearing center. This allows the inner ring, balls, and cage to rotate freely around the bearing center, maintaining alignment.
Inquire Now
Send Email

Notice: The company’s products are still being uploaded. If you can’t find what you’re looking for, please feel free to submit a request form directly.

Product Parameters

Designation Dimensions(mm) Basic load ratings
d D B r min. dyn. Cr KN stat. Cor KN
135 5 19 6 0.3 2.6 0.48
126 6 19 6 0.3 2.6 0.48
127 7 22 7 0.3 2.75 0.56
108 8 22 7 0.3 2.75 0.56
129 9 26 8 0.6 3.95 1
1200 10 30 9 0.6 5.7 1.18
2200-2RS-T 10 30 14 0.6 5.7 1.18
2200 10 30 14 0.6 8.8 1.73
1201 12 32 10 0.6 5.7 1.26
2201-2RS-T 12 32 14 0.6 5.7 1.26
2201 12 32 14 0.6 9.4 1.92
1202 15 35 11 0.6 7.7 1.73
2202-2RS-T 15 35 14 0.6 7.7 1.73
2202 15 35 14 0.6 9.6 2.08
2302 15 42 17 1 17 3.7
1203 17 40 12 0.6 8.1 2
2203-2RS-T 17 40 16 0.6 8.1 2
2203 17 40 16 0.6 11.8 2.75
1303 17 47 14 1 12.9 3.15
2303-2RS-T 17 47 19 1 12.9 3.15
2303 17 47 19 1 13.9 3.15
1204K 20 47 14 1 10.1 2.6
1204 20 47 14 1 10.1 2.6
2204-2RS-T 20 47 18 1 10.1 2.6
2204 20 47 18 1 14.7 3.5
1304 20 52 15 1.1 12.7 3.3
2304-2RS-T 20 52 21 1.1 12.7 3.3
2304 20 52 21 1.1 17.6 4.25
1205K 25 52 15 1 12.3 3.25
1205 25 52 15 1 12.3 3.25
2205-2RS-T 25 52 18 1 12.3 3.25
2205K-2RS-T 25 52 18 1 12.3 3.25
2205K 25 52 18 1 17.3 4.4
2205 25 52 18 1 17.3 4.4
1305K 25 62 17 1.1 18.3 4.95
1305 25 62 17 1.1 18.3 4.95
2305-2RS-T 25 62 24 1.1 18.3 4.95
2305K 25 62 24 1.1 25 6.5
2305 25 62 24 1.1 25 6.5
1206K 30 62 16 1 15.9 4.6
1206 30 62 16 1 15.9 4.6
2206-2RS-T 30 62 20 1 15.9 4.6
2206K-2RS-T 30 62 20 1 15.9 4.6
2206K 30 62 20 1 26 6.9
2206 30 62 20 1 26 6.9
1306K 30 72 19 1.1 21.7 6.3
1306 30 72 19 1.1 21.7 6.3
2306-2RS-T 30 72 27 1.1 21.7 6.3
2306K 30 72 27 1.1 32.5 8.7
2306 30 72 27 1.1 32.5 8.7
1207K 35 72 17 1.1 16 5.1
1207 35 72 17 1.1 16 5.1
2207-2RS-T 35 72 23 1.1 16 5.1
2207K-2RS-T 35 72 23 1.1 16 5.1
2207K 35 72 23 1.1 33 8.9
2207 35 72 23 1.1 33 8.9
1307K 35 80 21 1.5 25.5 7.8
1307 35 80 21 1.5 25.5 7.8
2307-2RS-T 35 80 31 1.5 25.5 7.8
2307K 35 80 31 1.5 40.5 11.1
2307 35 80 31 1.5 40.5 11.1
1208K 40 80 18 1.1 19.4 6.5
1208 40 80 18 1.1 19.4 6.5
2208-2RS-T 40 80 23 1.1 19.4 6.5
2208K-2RS-T 40 80 23 1.1 19.4 6.5
2208K 40 80 23 1.1 32.5 9.4
2208 40 80 23 1.1 32.5 9.4
1308K 40 90 23 1.5 30 9.6
1308 40 90 23 1.5 30 9.6
2308-2RS-T 40 90 33 1.5 30 9.6
2308K 40 90 33 1.5 46 13.4
2308 40 90 33 1.5 46 13.4
1209K 45 85 19 1.1 22 7.3
1209 45 85 19 1.1 22 7.3
2209-2RS-T 45 85 23 1.1 22 7.3
2209K-2RS-T 45 85 23 1.1 22 7.3
2209K 45 85 23 1.1 28.5 8.9
2209 45 85 23 1.1 28.5 8.9
1309K 45 100 25 1.5 38.5 12.6
1309 45 100 25 1.5 38.5 12.6
2309-2RS-T 45 100 36 1.5 38.5 12.6
2309K 45 100 36 1.5 55 16.5
2309 45 100 36 1.5 55 16.5
1210K 50 90 20 1.1 22.9 8
1210 50 90 20 1.1 22.9 8
2210-2RS-T 50 90 23 1.1 22.9 8
2210K-2RS-T 50 90 23 1.1 22.9 8
2210K 50 90 23 1.1 28.5 9.4
2210 50 90 23 1.1 28.5 9.4
1310K 50 110 27 2 42 14.1
1310 50 110 27 2 42 14.1
2310-2RS-T 50 110 40 2 42 14.1
2310 50 110 40 2 66 19.9
1211K 55 100 21 1.5 25.65 9.41
1211 55 100 21 1.5 25.65 9.41
2211-2RS-T 55 100 25 1.5 25.65 9.41
2211K-2RS-T 55 100 25 1.5 25.65 9.41
2211K 55 100 25 1.5 37.05 11.78
2211 55 100 25 1.5 37.05 11.78
1311K 55 120 29 2 49.4 16.82
1311 55 120 29 2 49.4 16.82
2311-2RS-T 55 120 43 2 49.4 16.82
2311K 55 120 43 2 73.15 22.61
2311 55 120 43 2 73.15 22.61
1212K 60 110 22 1.5 28.98 10.83
1212 60 110 22 1.5 28.98 10.83
2212-2RS-T 60 110 28 1.5 28.98 10.83
2212K-2RS-T 60 110 28 1.5 28.98 10.83
2212K 60 110 28 1.5 45.6 15.49
2212 60 110 28 1.5 45.6 15.49
1312K 60 130 31 2.1 55.1 19.57
1312 60 130 31 2.1 55.1 19.57
2312K 60 130 46 2.1 84.55 26.6
2312 60 130 46 2.1 84.55 26.6
1213K 65 120 23 1.5 29.45 11.78
1213 65 120 23 1.5 29.45 11.78
2213-2RS-T 65 120 31 1.5 29.45 11.78
2213K-2RS-T 65 120 31 1.5 29.45 11.78
2213K 65 120 31 1.5 55.1 18.05
2213 65 120 31 1.5 55.1 18.05
1313K 65 140 33 2.1 59.85 21.57
1313 65 140 33 2.1 59.85 21.57
2313K 65 140 48 2.1 93.1 30.4
2313 65 140 48 2.1 93.1 30.4
1214K 70 125 24 1.5 33.25 13.02
1214 70 125 24 1.5 33.25 13.02
2214-2RS-T 70 125 31 1.5 33.25 13.02
2214 70 125 31 1.5 41.8 16.06
1314 70 150 35 2.1 71.25 26.13
2314 70 150 51 2.1 106.4 35.15
1215K 75 130 25 1.5 37.05 14.73
1215 75 130 25 1.5 37.05 14.73
2215K 75 130 31 1.5 42.28 16.72
2215 75 130 31 1.5 42.28 16.72
1315K 75 160 37 2.1 76 28.03
1315 75 160 37 2.1 76 28.03
2315K 75 160 55 2.1 117.8 39.9
2315 75 160 55 2.1 117.8 39.9
1216K 80 140 26 2 38 15.96
1216 80 140 26 2 38 15.96
2216K 80 140 33 2 47.03 18.81
2216 80 140 33 2 47.03 18.81
1316K 80 170 39 2.1 84.55 31.35
1316 80 170 39 2.1 84.55 31.35
2316K 80 170 58 2.1 132.05 46.08
2316 80 170 58 2.1 132.05 46.08
1217K 85 150 28 2 47.03 19.57
1217 85 150 28 2 47.03 19.57
2217K 85 150 36 2 56.05 22.23
2217 85 150 36 2 56.05 22.23
1317K 85 180 41 3 94.05 35.63
1317 85 180 41 3 94.05 35.63
2317K 85 180 60 3 135.85 48.45
2317 85 180 60 3 135.85 48.45
1218K 90 160 30 2 54.15 22.14
1218 90 160 30 2 54.15 22.14
2218K 90 160 40 2 67.45 27.08
2218 90 160 40 2 67.45 27.08
1318K 90 190 43 3 103.55 40.38
1318 90 190 43 3 103.55 40.38
2318K 90 190 64 3 148.2 54.15
2318 90 190 64 3 148.2 54.15
1219K 95 170 32 2.1 57.6 24.3
1219 95 170 32 2.1 57.6 24.3
2219K 95 170 43 2.1 75.6 30.6
2219 95 170 43 2.1 75.6 30.6
1319K 95 200 45 3 120.6 45
1319 95 200 45 3 120.6 45
2319K 95 200 67 3 150.3 56.7
2319 95 200 67 3 150.3 56.7
1220K 100 180 34 2.1 63 26.55
1220 100 180 34 2.1 63 26.55
2220K 100 180 46 2.1 88.2 36
2220 100 180 46 2.1 88.2 36
1320K 100 215 47 3 130.5 51.3
1320 100 215 47 3 130.5 51.3
2320K 100 215 73 3 176.4 70.2
2320 100 215 73 3 176.4 70.2
1221 105 190 36 2.1 67.5 28.8
1321 105 225 49 3 142.2 57.6
1222K 110 200 38 2.1 80.1 34.2
1222 110 200 38 2.1 80.1 34.2
2222K 110 200 53 2.1 113.4 45.9
2222 110 200 53 2.1 113.4 45.9
1322K 110 240 50 3 148.5 63.9
1322 110 240 50 3 148.5 63.9
2322K 110 240 80 3 198.9 84.6
2322 110 240 80 3 198.9 84.6
1224 120 215 42 2.1 108.9 46.8
1226 130 230 46 3 112.5 49.5
1228 140 250 50 3 146.7 66.6
1230 150 270 54 3 162 77.4
11204 20 47 14 10 2.65
11205 25 52 15 12.2 3.35
11206 30 62 16 15.6 4.65
11207 35 72 17 16 5.2
11208 40 80 18 19.3 6.55
11209 45 85 19 22 7.35
11210 50 90 20 22.8 8.15
11212 60 110 22 30 11.6
11305 25 62 17 19 5.4
11306 30 72 19 22.5 6.8
11307 35 80 21 26.5 8.5
11308 40 90 23 33.8 11.2
11310 50 110 27 43.6 14
